Handling Bolt Hole Misalignment After Flange Welding

Handling Bolt Hole Misalignment After Flange Welding

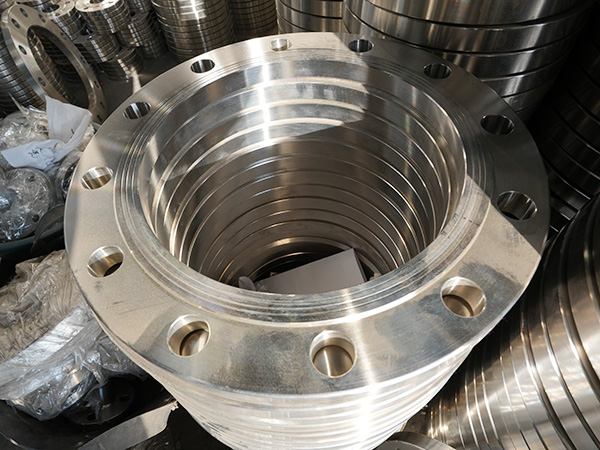

1. Assess the Degree of Misalignment

• First, measure the extent of bolt hole offset or angular deviation.

• Determine whether the misalignment is within allowable tolerance or requires correction.

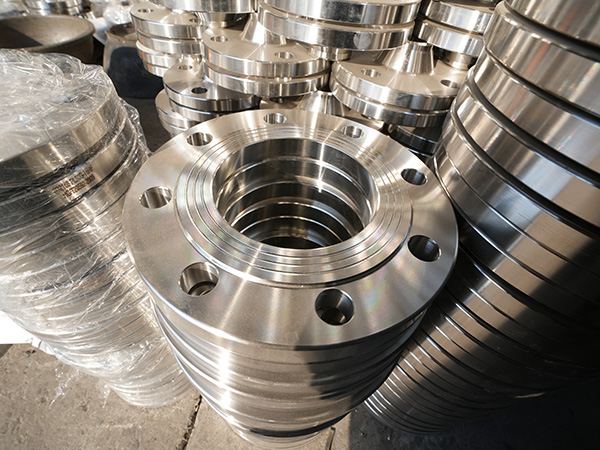

2. Mechanical Correction Methods

• Reaming or Enlarging Bolt Holes:
  Slight misalignment can often be fixed by carefully reaming or enlarging bolt holes on one or both flanges to achieve proper alignment.

• Bolt Hole Machining:
  Precision machining may be used to realign bolt holes if misalignment is significant but localized.

3. Flange Adjustment

• Controlled Mechanical Force:
  In some cases, applying controlled force (using jacks or clamps) can slightly shift flange position to better align bolt holes.

• Heating Techniques:
  Localized heating can be applied carefully to expand the flange area and allow slight repositioning, but this requires skilled control to avoid flange distortion.

4. Weld Repair and Rework

• If misalignment is caused by flange distortion during welding, grinding or removing weld metal and rewelding may be necessary to restore correct alignment.

• Re-check flange flatness and parallelism after repair.

5. Use of Custom or Oversized Fasteners

• As a last resort, specially sized bolts or washers can compensate for minor misalignments, but this is not recommended for critical or high-pressure systems.

6. Prevention for Future Welding

• Improve fit-up and fixturing before welding to minimize bolt hole misalignment.

• Use proper welding sequences and clamps to control flange movement.

Summary

Bolt hole misalignment after flange welding can be addressed by mechanical machining, flange repositioning, weld repair, or, in minor cases, special fasteners. Accurate measurement and controlled correction are key to ensuring flange integrity and proper assembly.
